Circuit design

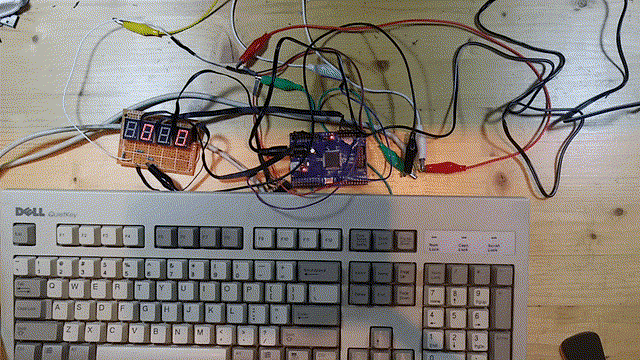

PS/2 keyboard decoder

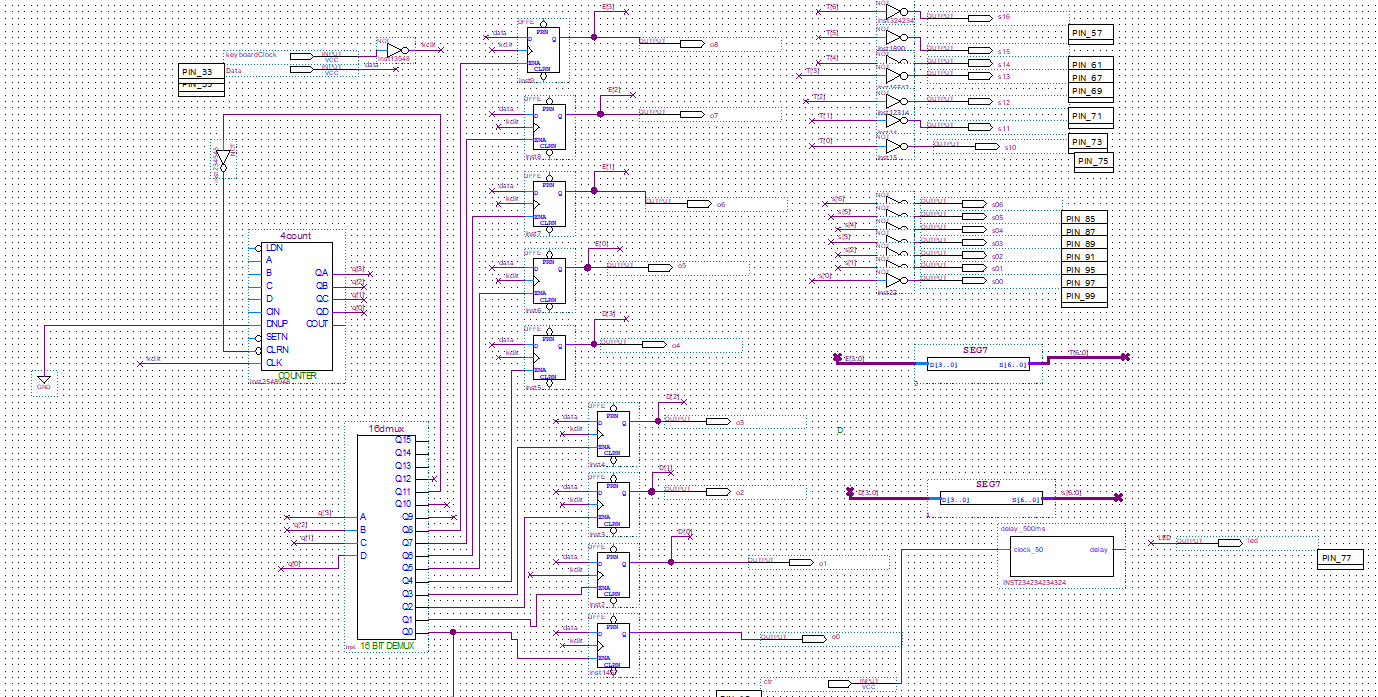

To experiment with CPLDs and logic design, I designed a hexadecimal decoder for PS/2 keyboards. I did so with simple components that could be bought on a chip and assembled onto a breadboard, like registers, demultiplexers and a hexadecimal counter. This was made in a Quartus prime as a block diagram circuit and uploaded onto an Altera MAX II CPLD development board. The output of the circuit (the hex code of the key) was displayed on a seven-segment display module that I made myself from repurposed components.

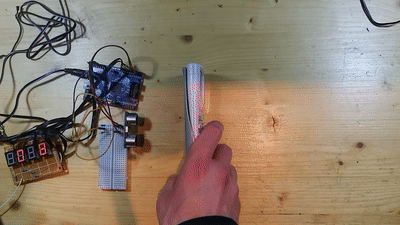

Ultrasonic distance sensor interface in Verilog HDL

To learn how to design logic circuits using Verilog HDL, I built a module to interface with an ultrasonic distance sensor (HC-SR04) and output the estimated distance between the module and the next object in front of it in hexadecimal.
I then made another module to convert that distance to decimal (BCD) using the double dabble algorithm.
Finally, I added modules to display the distance on seven segment displays and uploaded the design on an Altera Max II CPLD to test the accuracy of the system.

Arduino

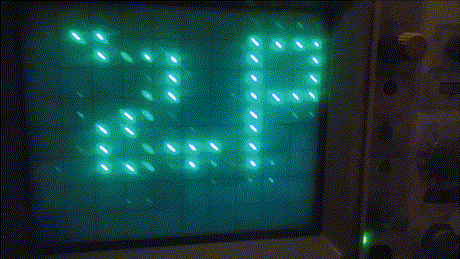

Oscilloscope drawings

As part of this short project, I made a software and hardware solution to make drawings on an oscilloscope in x/y mode.
The hardware implemented was two 4-bit digital-to-analog converters (DAC) implemented with a R-2R resistive circuit allowing to have 16 voltage values as output. The 4 inputs of these DACs are connected to an Arduino uno which iterates over the x/y coordinates to light up represented by nibbles.
The Arduino code iterates over the coordinates that are contained in a header named pointValues.h containing the drawing’s data.

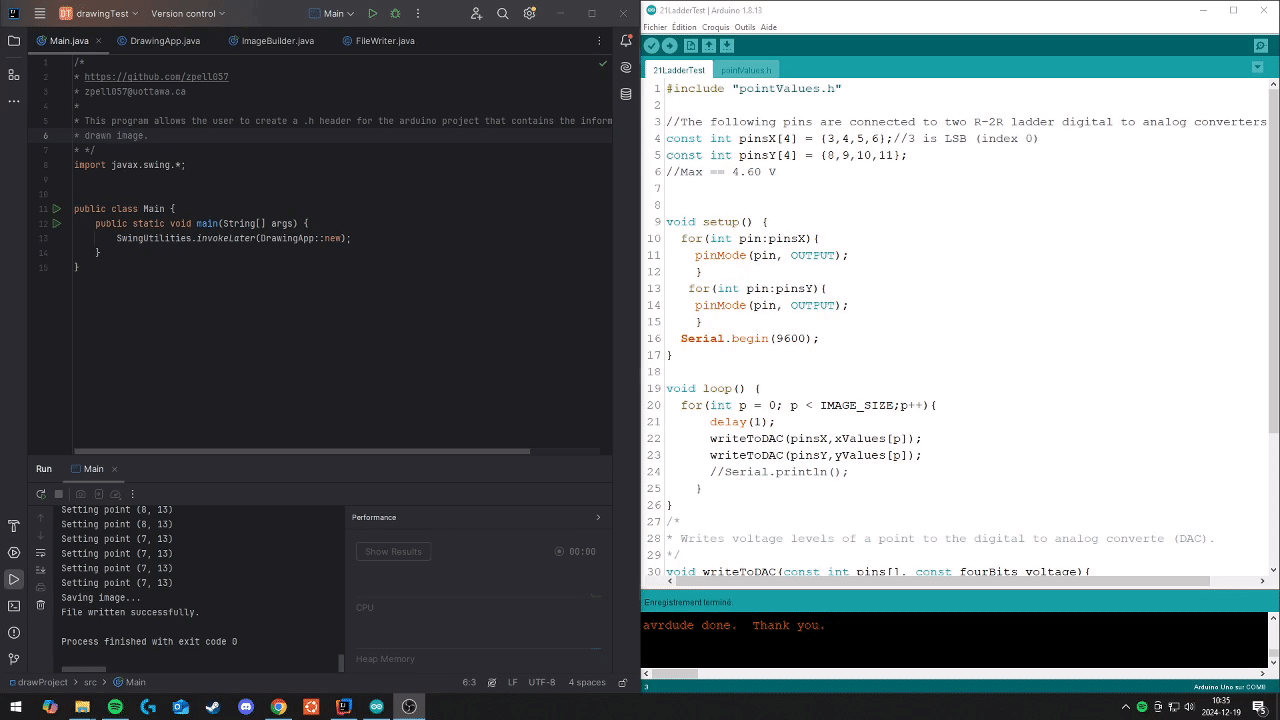

To make the header for a drawing, I made a program in Java that lets the user make a drawing with his mouse which will be automatically converted into a pointValues.h file that can be compiled an uploaded to the Arduino board to display the drawing on the oscilloscope.
This is the program I used to make my current profile picture.

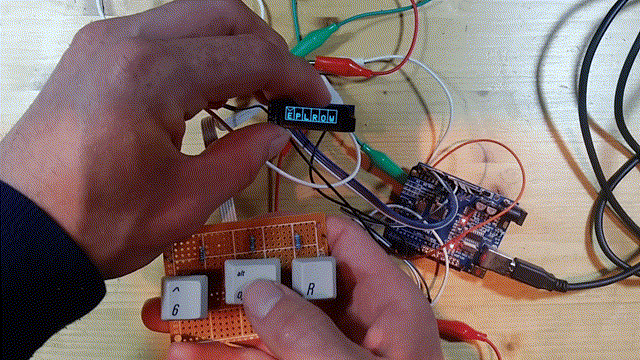

Game & Watch-type game

Arduino projects are some of my favorites, because they let me combine my interests in software and hardware development.
The GIF to the right presents a game that I have made where the player sorts alphabetically a randomly generated array of numbers using a controller made from repurposed keyboard switches (from the keyboard I am playing with in the header).
In the next projects I have made an infinitely looping animation for VGA monitors and a device that plays a sound from an SD card when a switch is opened.

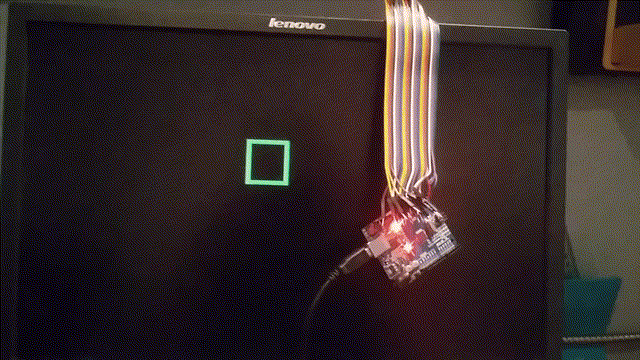

VGA animation using

Smaffer's VGAX library

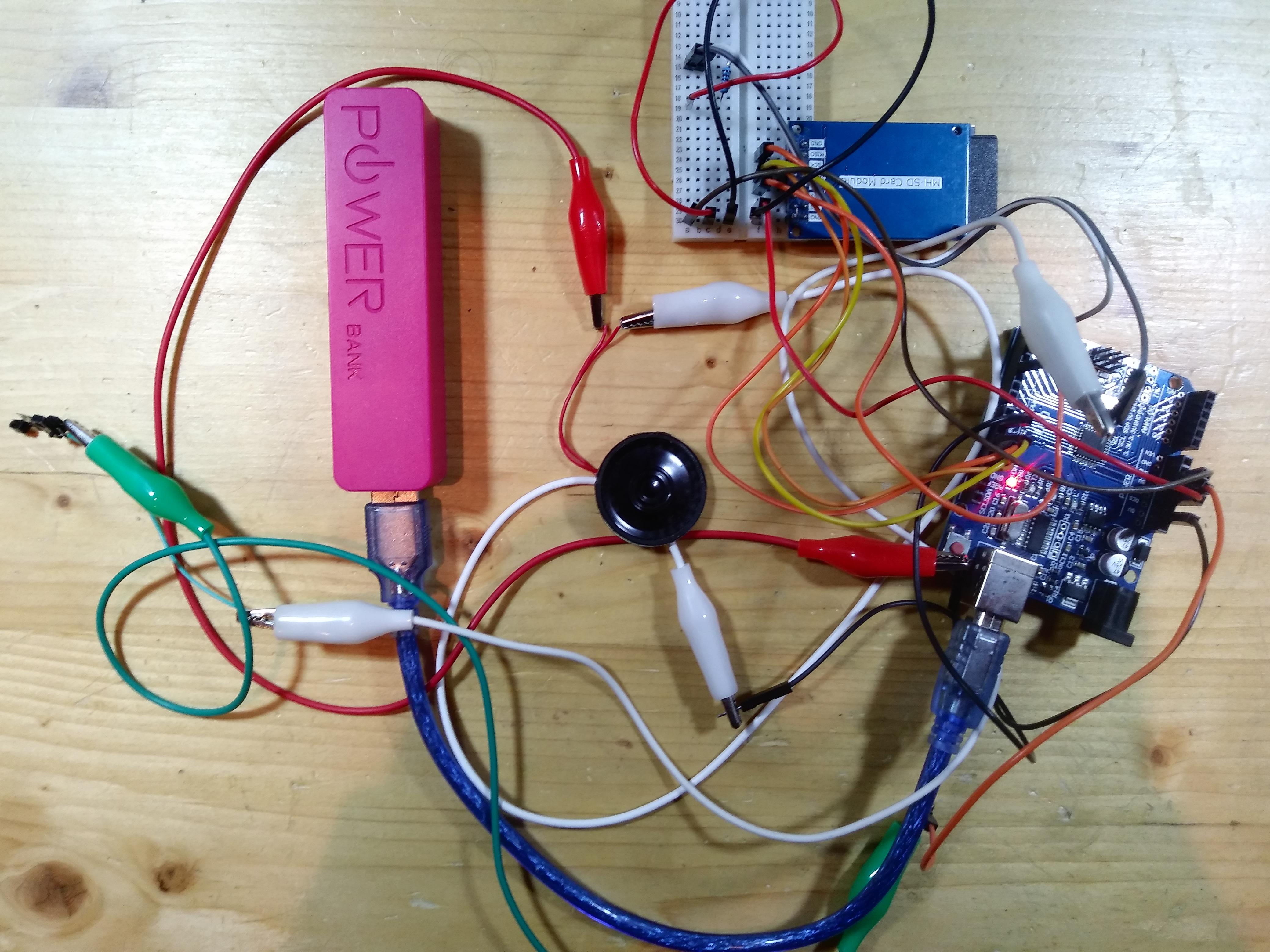

Audio message player using an SD card reader, a small speaker and a switch

Java + Android

SEG 2105 PC Building App

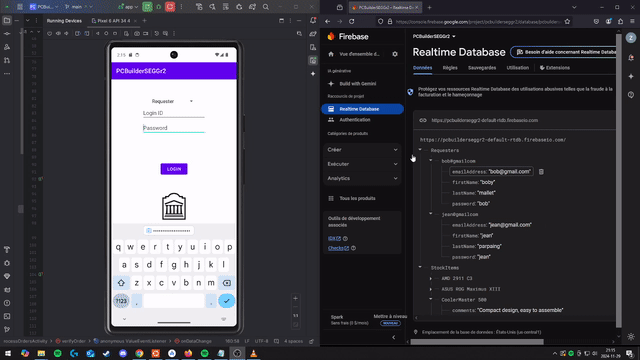

As part of the SEG 2105 course, we had to build an Android application capable of managing the inventory and ordering system of a fictional computer manufacturer. The project was carried out by a team of four of which I was the manager.
The Android application was written in Java and was linked to a Firebase real-time database, which was my first experience with databases.
As team manager, I was also responsible for integrating my colleagues’ branches into the main branch of the Git repository of the project by resolving conflicts, testing and correcting implementation defects.

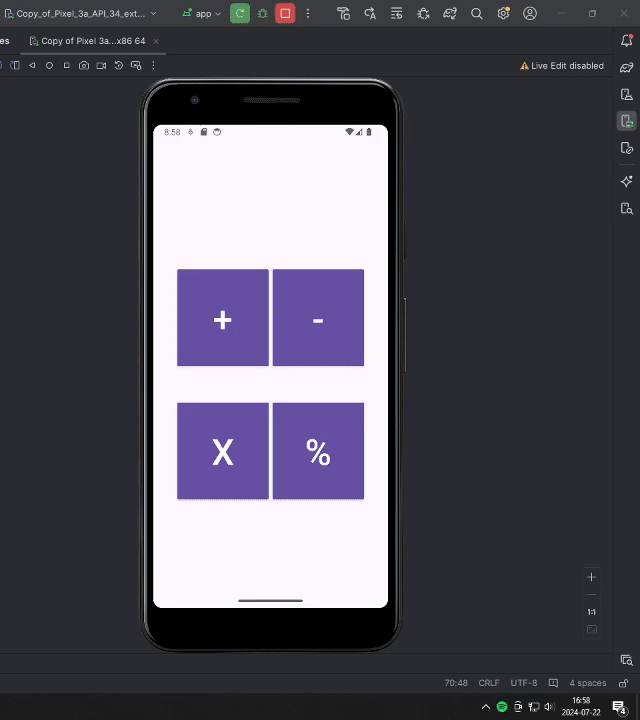

Arithmetic practice Android app developped in Java using Android Studio

I have learned Java in one of my first year university courses. Being an android user and knowing that android apps run on the JVM, I wanted to apply the theoretical knowledge from this course for a project. I therefore decided to make an app inspired by Texas Instruments' Little Professor toy.
With the help of an online course, I easily translated that knowledge to real-life use.

Python


Loop creation software for Hack the Hill II hackathon

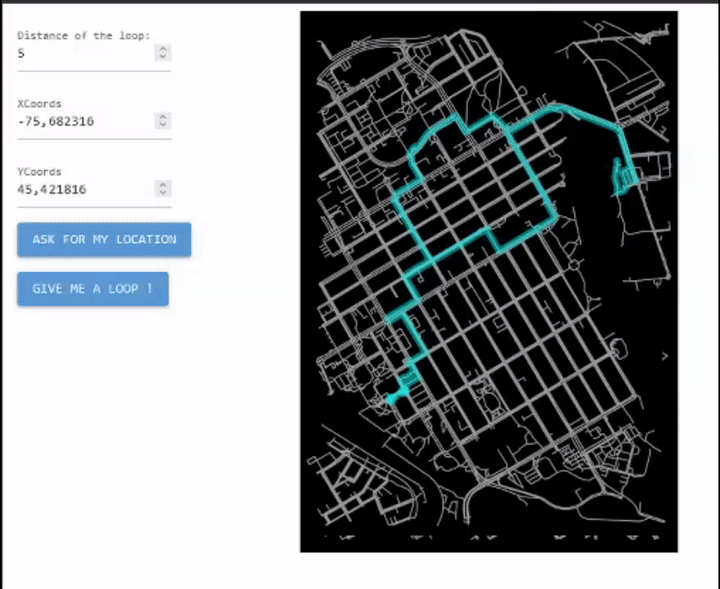

For the general category of the 2024 Hack the Hill II hackathon, I built a program in python that, when given a point location and a target distance, would generate a loop for the user to walk or run. The program aimed to help people be more active despite decision fatigue. The algorithm that I built for the program optimised the loop for safety and for enjoyability, by prioritising pedestrian paths and smaller streets where the speed limits are slower.
I built the integrity of this program on my own by using common shortest path graph algorithms and had a lot of fun presenting the project to other programmers.

Charts compilation

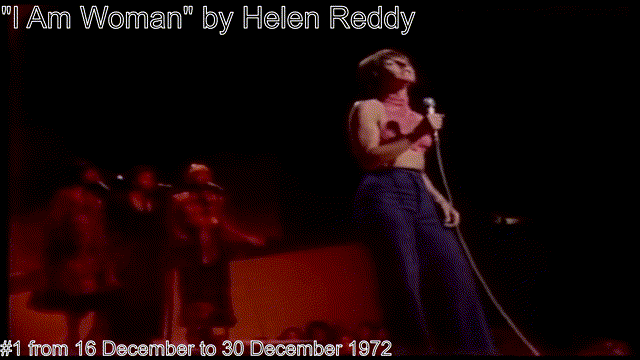

Series of python programs made to edit a video compilation of all #1 songs on the canadian charts in a given decade. The data of what songs were #1 during what time was scraped off of wikipedia using

pandas

to then be searched and downloaded from Youtube using google cloud's Youtube Data API v3 and

pytube

. The final video was then created by editing 10 second clips from each video and adding text showing info about the song with

moviepy.

3D

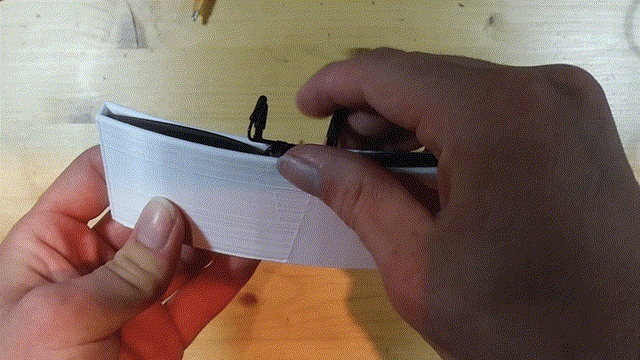

Various 3D modeling projects done in Fusion 360 and onshape.

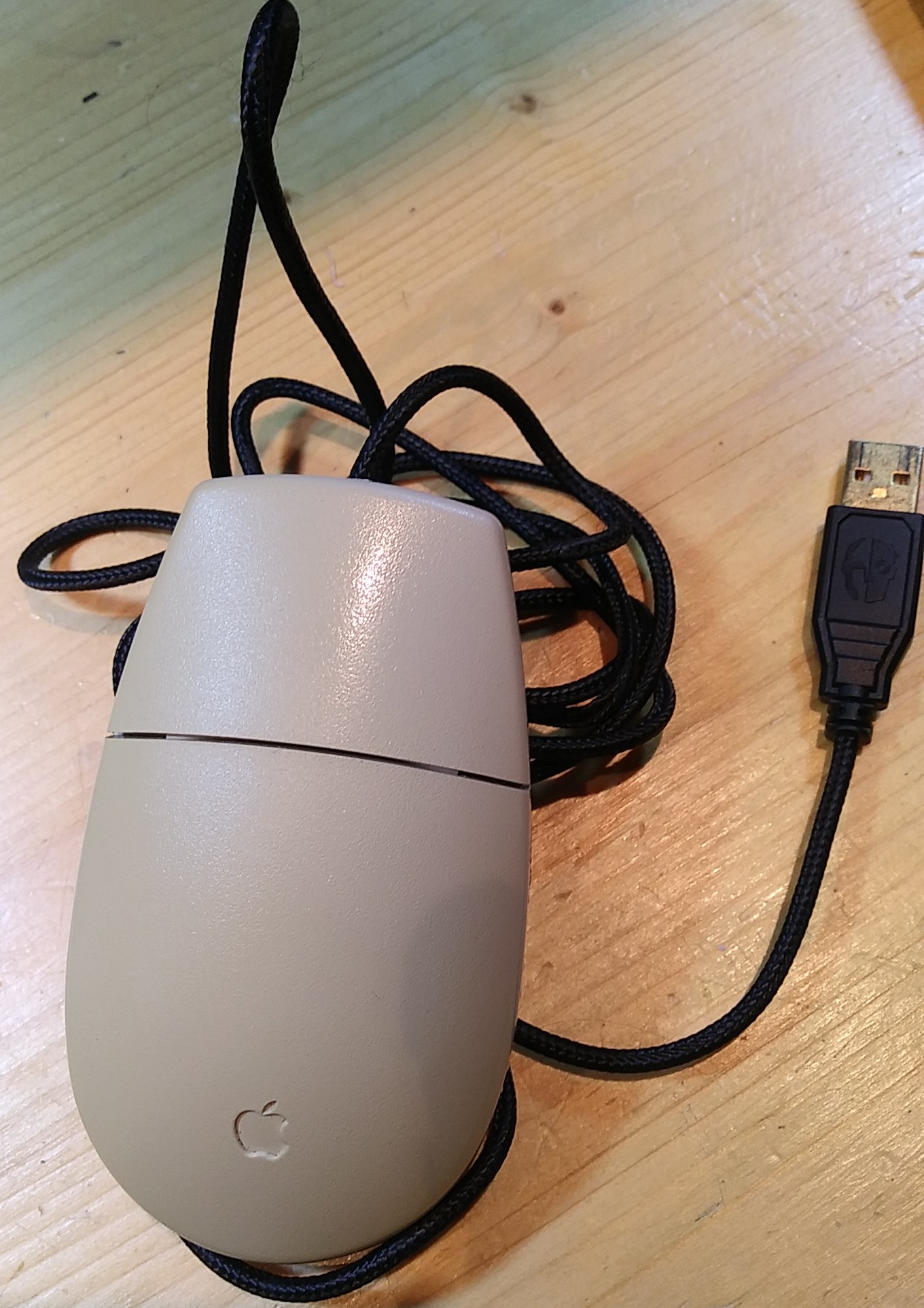

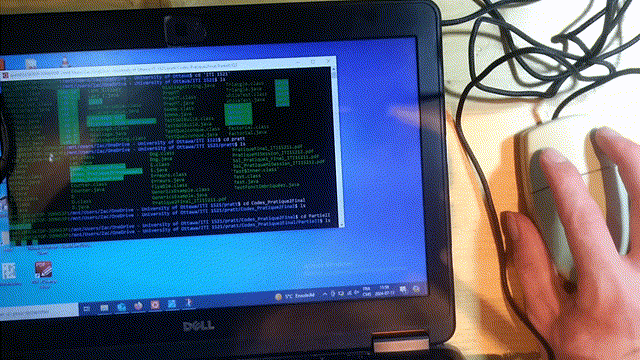

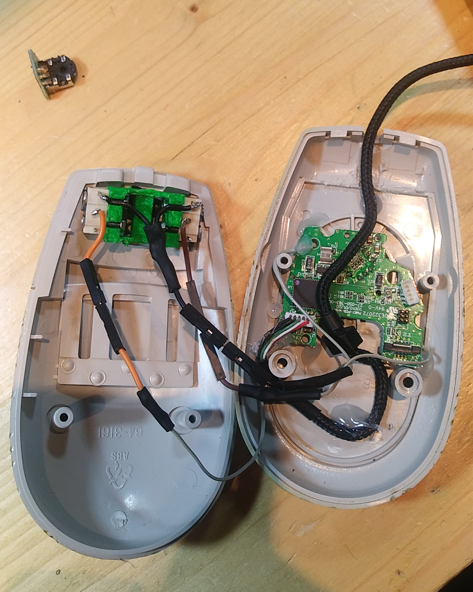

Old Apple computer mouse converted to optical and USB to be used on modern computers using the internals of a modern mouse.

uOttaHack 2025

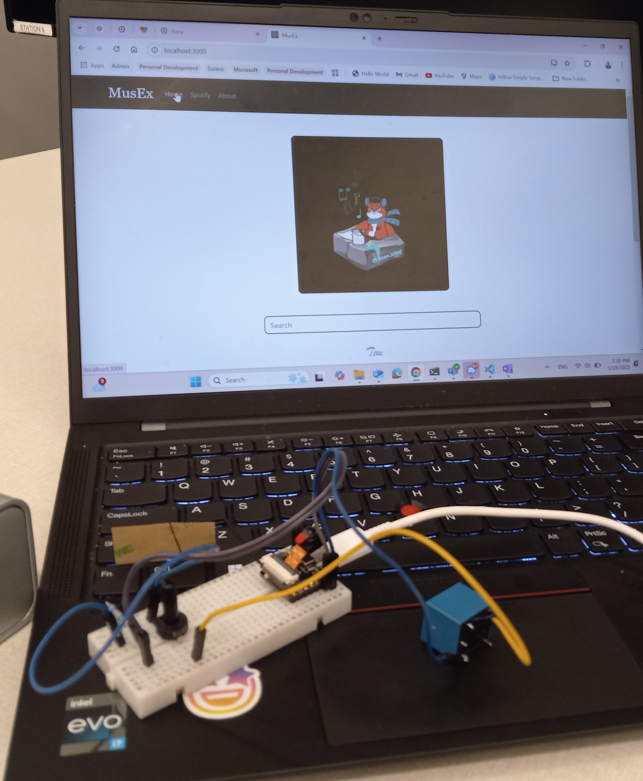

As part of the 2025 uOttaHack hackathon, I collaborated with my software developer friend to build a Hardware-Software solution to assist hearing-impaired users in feeling music through vibrations.
Over the weekend, my friend built the software, a web-app with an aesthetic user interface that communicates with Spotify’s API to provide music recommendations to the user.
I designed the hardware part of the solution with the ESP-32 modules that were provided by Seeed Studio, a sponsor of the event. The solution used a relay connected to a switching BJT transistor circuit to allow the microcontroller to output vibrations to the user through the clicking of the relay. The microcontroller took the output of the on-board microphone and performed a Fast Fourier Analysis algorithm on the audio signal. I then made a custom algorithm to translate the frequencies form the Fourier Analysis to lower frequencies in the relay.

GNG 2101/2501

GNG 2101 is a second year engineering class where teams of five students are paired with a client for whom they must create an accessible solution that empowers clients by increasing their independence.

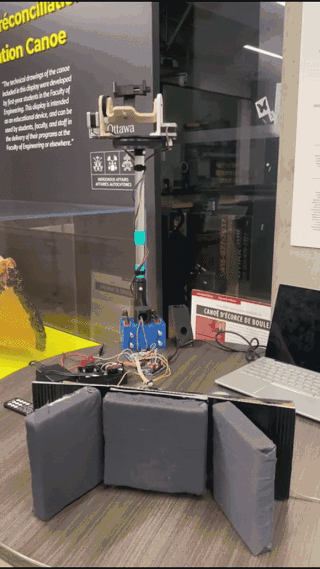

Our client was a youtuber with cerebral palsy who wanted a gimbal-style camera support that they could move by pressing buttons on the head array they use daily to move their wheelchair.
As the team manager, I contributed to the team by organizing the work of my teammates and managing deadlines, which was greatly appreciated by my peers.
I also designed, soldered, assembled and programmed the electronic system of the product, which consisted of stepper motors that moved the camera, which were controlled by an Arduino that detected which button was pressed on the client's head array through a simple analog circuit incorporating photoresistors.
At the end of the semester, our team placed first in our section in the university's Design Day competition, earning a perfect score from our judges.

GNG 1103/1503

GNG 1503 is a first-year class where students cooperate in teams of 4 to 6 to create a solution for a real-life client.
When I took the class in the fall semester of 2023, my team and I had to create a solution to accurately and efficiently determine the dimensions of roller bearings put in front of a camera. The solution had to be simple to use and cheap.
Because I was the only student in our team who knew how to code, I had the responsibility of creating a program that would determine the size of a roller bearing and automatically find which bearing was being measured.
I developed this program in Python using OpenCV to detect the shapes of the bearing and compare their sizes to a square of known dimensions. Using Pandas, the program then efficiently sorted through the catalog of bearings of the client and returned the products which were closest to the measurements. The right bearings were usually in the first ten bearings returned by the program, depending on the quality of the pictures of the bearings.
In the final competition on design day, our solution was judged as the second best in our category.

CÉGEP

For my CÉGEP capstone project, I was in a team of three to design a project relating to physics and math.

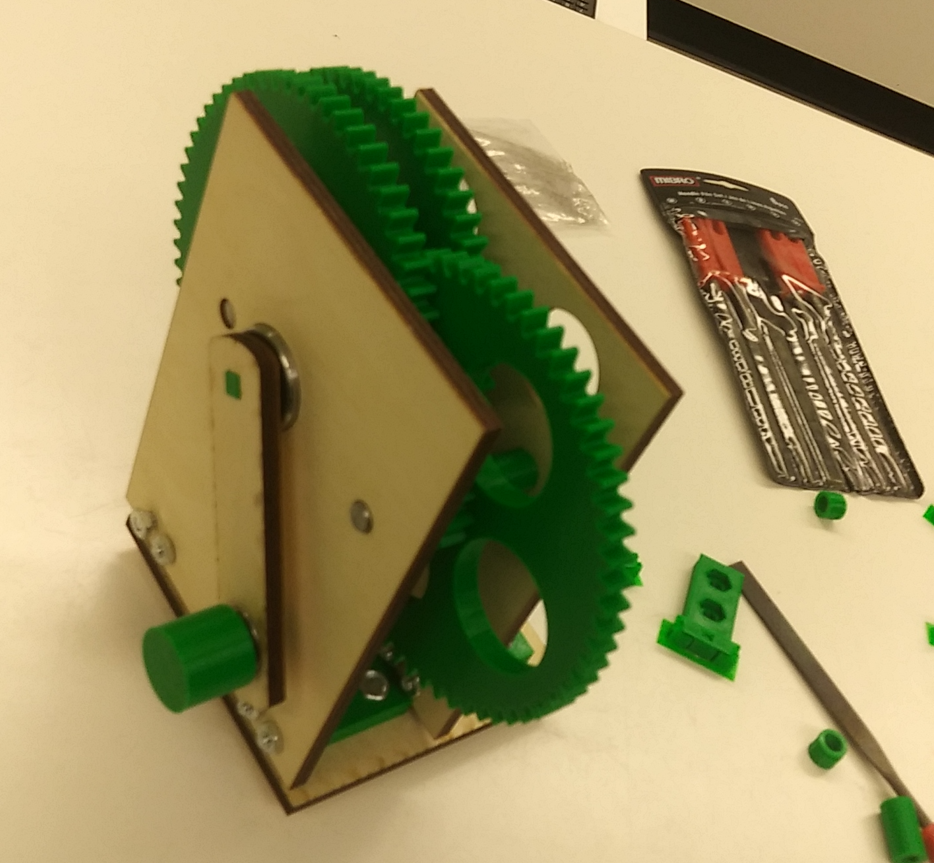

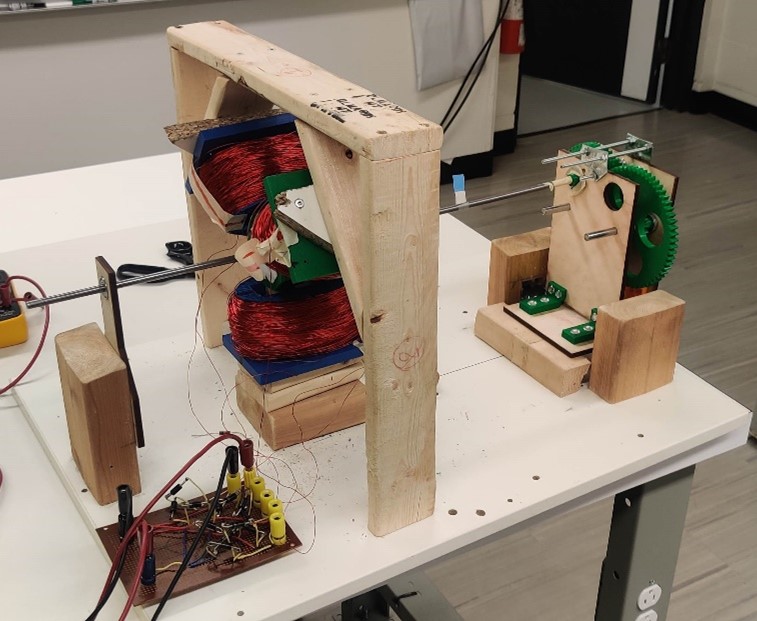

We decided to build a manually powered electric generator from scratch. I built, among other things, the gearbox that spun the magnetic rotor that induced the current.
We then rectified and normalised the current to make it DC with an electric circuit.
After a lot of optimisations, we were able to induce 3.2 volts DC from the rectified output of our three coils.

Créalab

While I was studying at CÉGEP, I joined the Créalab which is a student club taking place in the school’s makerspace.

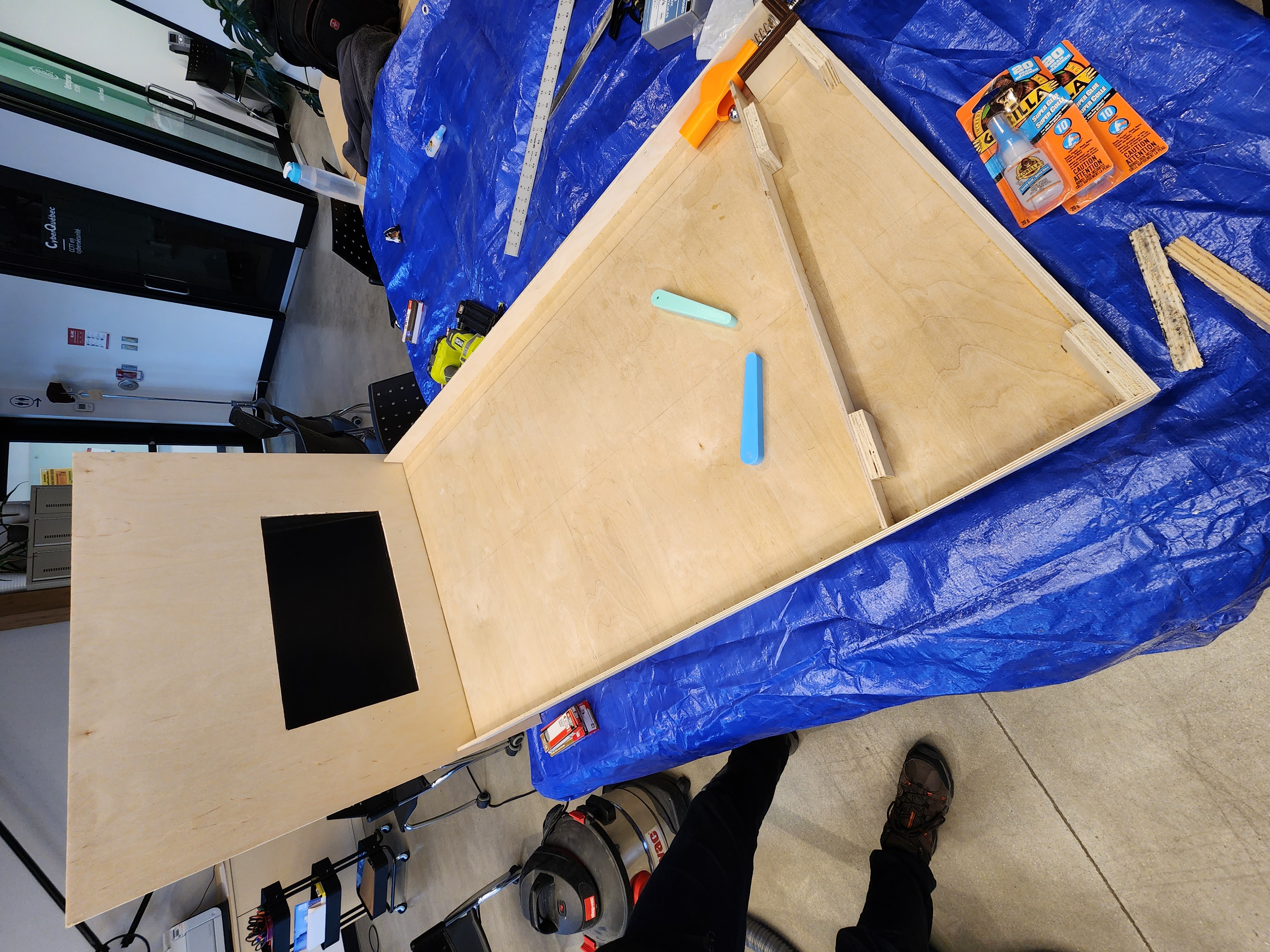

Our project was to build a pinball machine from scratch.
I was mostly involved in designing 3D printed parts to build the features and obstacles that the ball would hit.
I enjoyed my time at the club, because it allowed me to meet other like-minded creatives and tinkerers. The club also served as experience on collaborative work among a team of different people who work towards a common goal.
